250 Sandmaster Pump- Short Frame Pump

Product Name: 250 Centrifugal Pump-Short Frame
OEM reference Nos: MISSION SANDMASTER/MCM 250 Short Frame
Our Part Nos: 250 SD
Application: Solid Control, Cementing
Origin: China
Lead time: Stock-1 week
Certificate: ISO 9001

Send Inquiry

Download

Product Description

GMS, your trusted manufacturer and supplier of high-quality 250 Sandmaster Pump solutions. Our products deliver the same exceptional performance as original equipment, making them an ideal choice for oil and gas exploration companies, drilling contractors, equipment distributors, and engineering procurement companies.

250 Sandmaster Pump Introduction

The Sandmaster Centrifugal Pump, known for its compactness and versatility, encompasses nearly all the attributes of the Magnum I model. With a more streamlined design, the Sandmaster can be readily modified to accommodate hydraulic motor drives, rendering it exceptionally suitable for diverse applications. These include, but are not limited to, oilfield fracturing vehicles and the mixing and pump charging processes in water well drilling operations.

Every component of the Sandmaster pumps mirrors those of the Magnum, with the exception of the frame and the shaft. These two elements have been reduced by 4 inches to curtail the overall length of the pump. This modification makes the Sandmaster pump the preferred option in scenarios where spatial constraints are significant and the selection of prime movers is restricted.

Product Advantages

Stable Performance
The product is designed to deliver stable and reliable performance in even the toughest conditions.

Industry Standards
Our product is fully compliant with international standards, including ISO certifications, ensuring that it meets the highest safety and quality benchmarks.

Product Info

Product Name	GMS-250 Sandmaster Centrifugal Pump
OEM Reference Nos	MISSION Magnum/MCM 250
GMS Part Nos	GMS-250
Application	Cement Charge Pump Blender Waterwell Drilling Other Mobile uses
Origin	China
Lead Time	Stock-1 week
Certificate	ISO 9001

Product Application

The 250 Sandmaster Pump is primarily applied in solid control tasks and cementing activities.

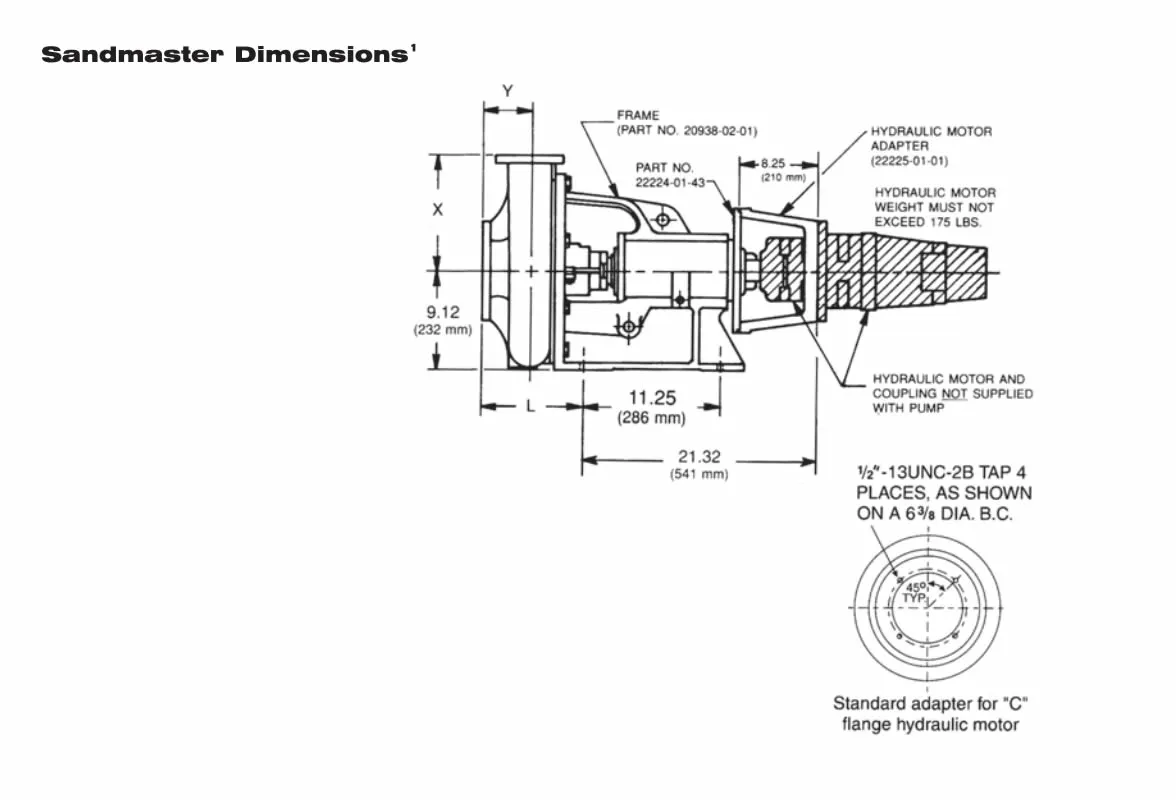

Products drawing

product-1-1

Product parts list

ITEM				QTY		MISSION PART No.		DESCRIPTION			MATERAIL			WEIGHT kg
1*				1		See below		Casing
1A				1		10399-46-1		Gasket,casing			Vellumoid			0.01
1B				12		3932-61		Nut,casing			Stl			0.05
1C				12		3862-76		Stud,casing			Stl			0.16
1D				1		8505-04-01		Plug,Casing Drain			Stl			0.03
1E				1		8505-04-01		Plug,flush line			Stl			0.03
2*				1		See below		Impeller
2A				1		19110-72		Seal,impeller			Viton			0.002
2B				1		7300239		Washer,impeller			Stl			0.02
2C				1		7415648		Bolt,impeler lock			Stl			0.15
3*#				1		22223-01-30		Stuffing box,mech.seal			Hard Iron			20
3*&				1		20614-01-30		Stuffing box,packed			Hard Iron			20
3A				2		3861-117		Bolt,stuffing box			Stl			0.05
4				1		20622A		Gland assy,packing			Stl 304			1
5A#				1		22451-1		Seal,mechanical			Tung/Tung			1
5A#				1		648402600		Packing, Shaft - M.S. Backup			Graphite Acrylic			0.3
5A#				Option		648402600		Packing, Shaft - M.S. Backup			Kevlar			0.3
5A				1		25014-04M-B		Packing, Shaft - w/latern ring			Graphite/Acrylic			0.5
5A				Option		250147-04M-D		Packing, Shaft - w/latern ring			Teflon, White			0.5
5A#				Option		25014-04M-C		Packing, Shaft - w/latern ring			Kevlar			0.5
6				2		B3701A		Bolt assy,gland			Stl 304			0.15
7				1		20939-02-33		Shaft			42CrMo			15
7A				1		20943-04A		Sleeve,shaft			38CrMoAl			1
7B				1		4371-5-21		Key,shaft			Stl			0.11
7C				1		23444-01-72		Seal,shaft sleeve			Viton			0.005
8				1		22210-1A		Deflector assembly			Composite			0.4
9				1		20938-02-1		Frame,grease lubricated			Cast iron			75
9C				1		8505-04-01		Plug, Frame Drain			Stl			0.033
9D				1		8267-01		Breather			Stl			0.1
9G				3		2538-1H		Bolt,casing jack			Stl			0.16
10A				1		20626		Cover,inboard bearing			Iron			2.6
10B				1		20625		Gasket,I.B.Brg.Cover			Vegetable fiber			0.01
10C				1		20619-01		Oil seal, I.B.Brg.Cover			Buna-n			0.06
10D				2		3861-1		Bolt, I.B.Brg.Cover			Stl			0.03
10E				2		3932-2		Nut, I.B.Brg.Cover			Stl			0.07
10F				1		20620-01		Exclusion Seal, I.B. Brg. Cvr.			Buna-n			0.01
10G				1		21641-01		Grease fitting			Stl			0.07
10H				1		648411908		Grease fitting			Stl			0.07
11				1		661 00901 OA		Bearing, Inboard & Spacer			Roller			2.1
11				1		20615-1		Bearing,inboard			Vendor			2.1
12				1		20624-01-01		Housing,O.B.bearing			Iron			6
12A				1		7496-253		Seal, O.B.Brg.housing			Buna-n			0.01
12B				4		3861-138		Bolts, O.B.Brg.housing			Stl			0.05
12C				2		3932-62		Nut, O.B.Brg.housing jam			Stl			0.016
13				1		20617A		Cover,O.B.Bearing			Iron			1.8
13A				1		19368-01		Grease zerk, O.B.Brg.Cover			Brass			0.01
13B				1		7496-26		O-ring, O.B.Brg.Cover			Buna-n			0.001
13C				1		20619-02		Oil seal, O.B.Brg.Cover			Buna-n			0.04
13D				2		3861-139		Bolt, O.B.Brg.Cover			Stl			0.025
14				2		20616-1		Bearing, O.B.			Vendor			1.5
14A				1		6124-4		Lockwasher,O.B.Bearing			Stl			0.01
14B				1		6123-4		Locknut, O.B.Bearing			Stl			0.22
Casings-includes studs,nuts & gasket
1*			1			19203-01-30A		Casing,3×2×13		Hard Iron			55
1*			1			19205-01-30A		Casing,4×3×13		Hard Iron			57
1*			1			19222-01-30A		Casing, 5×4×14		Hard Iron			88
1*			1			19122-01-30A		Casing,6×5×11		Hard Iron			90
1*			1			19123-01-30A		Casing, 6×5×14		Hard Iron			95
1*			1			19763-01-30A		Casing, 8×6×11		Hard Iron			97
1*			1			19117-01-30A		Casing,8×6×14		Hard Iron			125
1*			1			20937-01-30A		Casing,10×8×14		Hard Iron			155
Impellers
	2*	1			19204-XX-30		Impeller,3×2×13		Hard Iron			9
	2*	1			19206-XX-30		Impeller,4×3×13		Hard Iron			12.5
	2*	1			19224-XX-30		Impeller,5×4×14		Hard Iron			16
	2*	1			19121-XX-30		Impeller,6×5×11		Hard Iron			14
	2*	1			19121-XX-30		Impeller, 6×5×14		Hard Iron			18
	2*	1			19116-XX-30		Impeller, 8×6×11		Hard Iron			18
	2*	1			19116-A0-30		Impeller,8×6×14		Hard Iron			20
	2*	1			21867-XX-30		Impeller,10×8×14		Hard Iron			20

product-1-1

Why Choose GMS as Your Supplier?

Choosing GMS means opting for reliability and expertise. Our credentials include:

ISO 9001 Certificate: Our ISO 9001 certification illustrates our immovable commitment to conveying top-quality items and administrations through a steady and viable quality administration system.
Long time Industry Involvement: With over ten a long time of industry encounter, we bring a riches of information and mastery, guaranteeing dependable, high-quality items that surpass client expectations.
Fast Reaction: We esteem your time, prioritizing fast reactions to request, guaranteeing you get quick, clear communication and opportune arrangements to keep your ventures on track.
Large Stock: Our broad stock of items guarantees a wide determination, prepared to meet your prompt needs and give you with fast, proficient arrangements for any project.
Short Lead Time: We pride ourselves on advertising brief lead times, streamlining our generation and conveyance forms to offer assistance you meet venture due dates and dodge pointless delays.
Good After-Sales Administrations: Our committed after-sales bolster guarantees that any concerns are quickly tended to, giving you with persistent help for a hassle-free post-purchase experience.
Flexible Arrangements: We offer adaptable arrangements custom-made to your particular needs, giving customized items and administrations that guarantee the idealize fit for your interesting necessities.

We understand the demands of the oil and gas industry and are committed to providing tailored solutions that meet your unique needs.

product-1-1

FAQ

Q: What is the lead time for the product?
A: The lead time depends on required quantities; we usually have stock available for small quantities.

Q: Do you have any certificates for the product?
A: Yes, we possess an ISO certificate for Centrifugal Pumps and parts

Q: How can I place an order?
A: Simply contact us at sales@gmssupply.com, and our team will assist you through the ordering process.

Contact Us

If you're interested in learning more about the product or if you have specific inquiries, please reach out to us today.

At GMS, we aim to attract key players in the oil and gas drilling industry, including drilling contractors, equipment distributors, by offering high-quality, reliable products.
