GMS, your trusted manufacturer and supplier of high-quality Mission Magnum XP Pump solutions. Our products deliver the same performance as original ones, ensuring durability and reliability in the demanding oil and gas industry.
Pump sizes:
14X12X22/12x10x23/8x6x18
The product is renowned for its efficiency and robust design, making it an ideal choice for oilfield applications. Engineered specifically for demanding environments, this pump excels in both upstream drilling operations and solid control applications. Leveraging innovative technology, the product ensures consistent performance under high pressure and temperature, meeting the rigorous demands of modern drilling projects.
Stable Performance
Our product is engineered to provide consistent, reliable performance in even the most challenging oil and gas environments.
Industry Standards
Our product adheres to globally recognized standards, including ISO 9001 and API certifications. These certifications guarantee the product meets rigorous safety, quality, and performance benchmarks.
Feature |
Details |
Product Name |

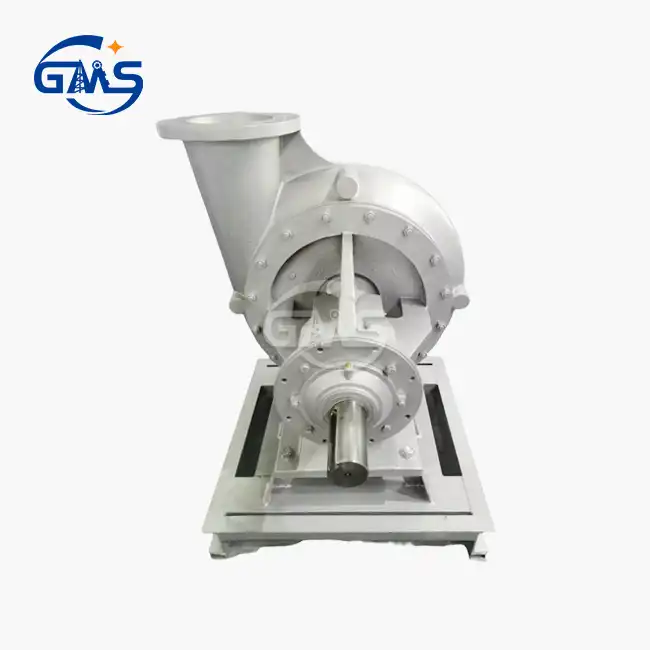

GMS-250 XP Centrifugal Pump |
OEM Reference Nos |
MISSION Magnum XP/MCM 250 XL |
GMS Part Nos |
GMS-250 XP |
Application |
Solid Control, Cementing, Sand slurry |
Origin |
China |
Lead Time |
Stock - 1 week |
Certificate |
ISO 9001 |
The Mission Magnum XP Pump is mostly used on petroleum fracturing vehicles and are suitable for high-power working conditions in harsh operating environments, providing essential support for various applications including solid control and cementing processes. Its versatility and adaptability make it a vital component for both onshore and offshore drilling operations.

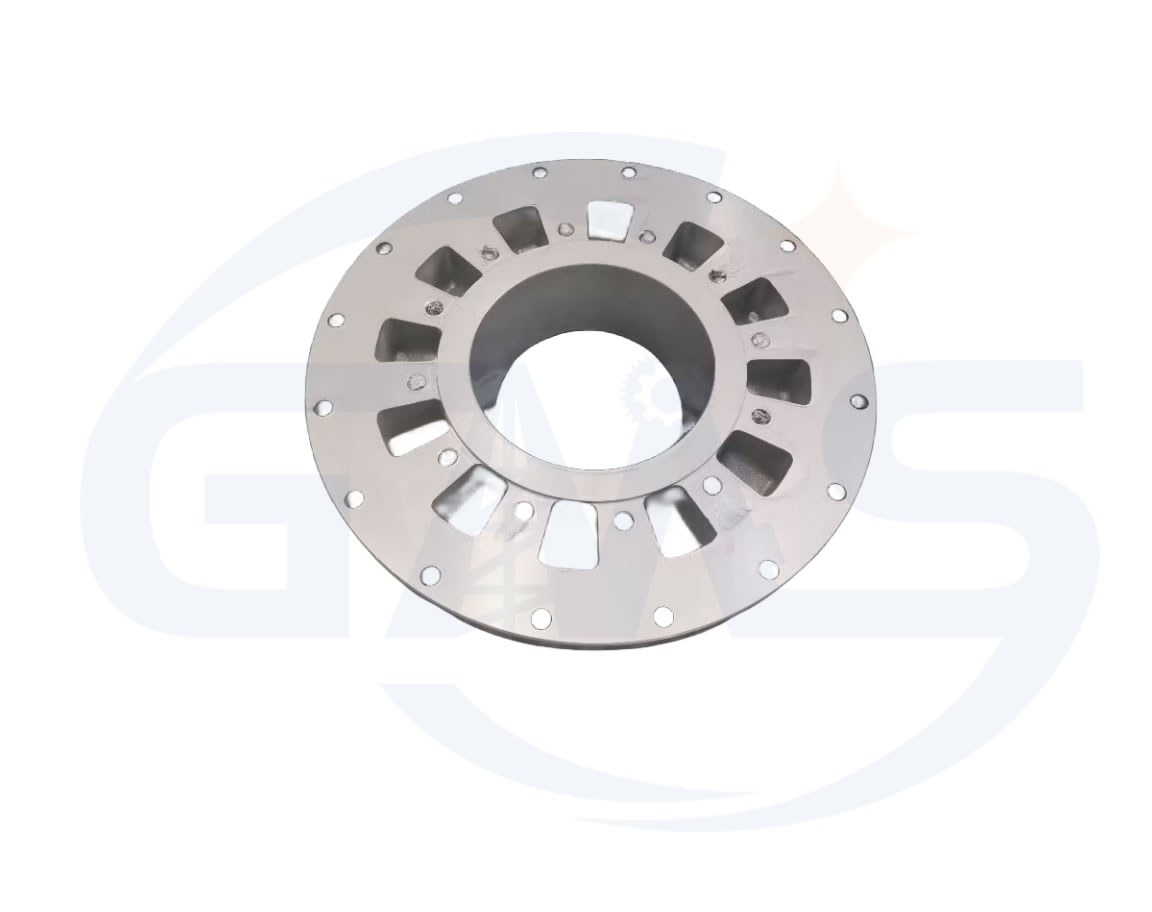

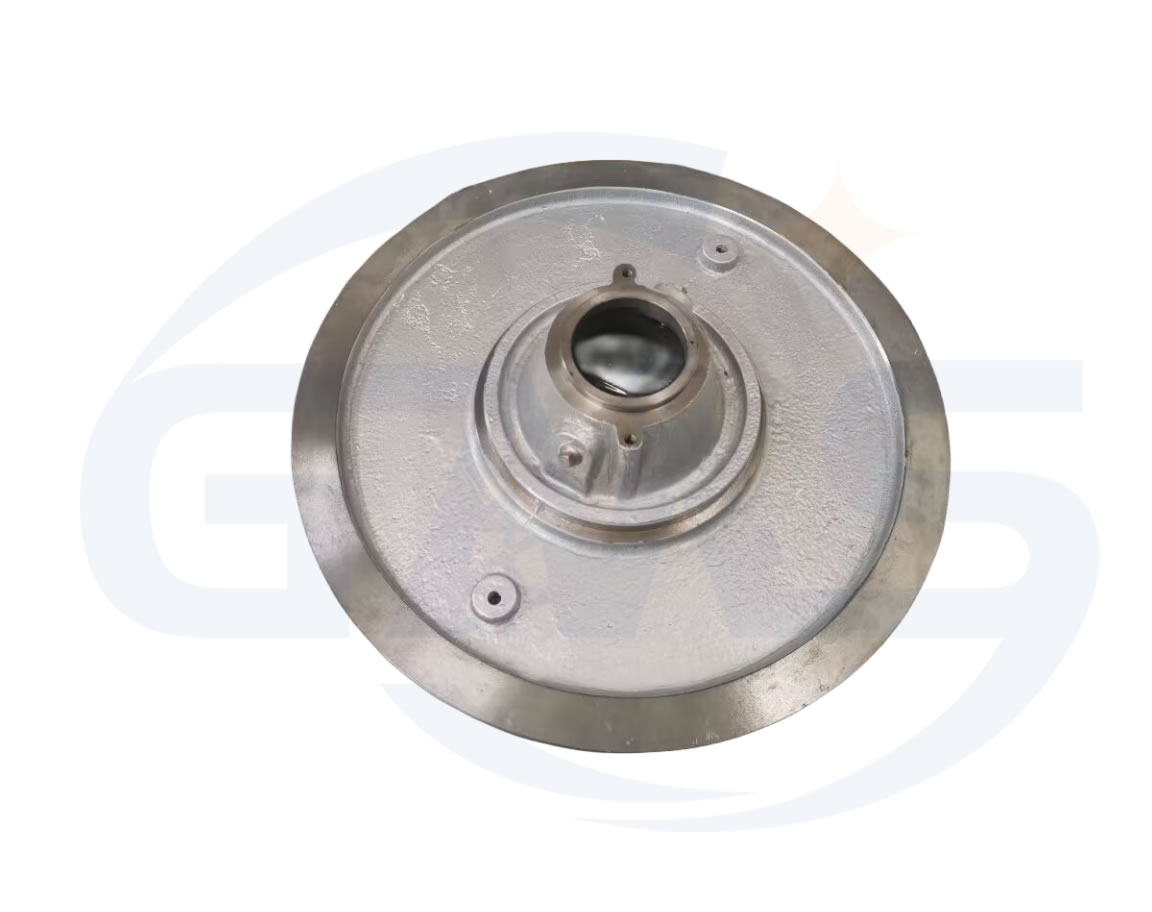

EG- XP Blender pump Parts List | |||||||||
Item # | Description | Qty. | Base Part Number | Processing Number | Item # | Description | Qty. | Base Part Number | Processing Number |
1 | Casing, 14X12X22 | 1 | 24022-01-30A | 651120206 | 25 | Bearing, Outboard (14X12 ) | 1 | 20616-2 | 658413307 |
Casing, 12x10x23 | 25008-01-30A | 662001001 | Bearing, Outboard (12X10 & 8X6) | 2 | 661009001 | ||||
Casing, 8x6x18 | 25289-02-30A | 662002089 | 26 | Seal, Bearing Cover | 1 | 7496-267 | 658408802 | ||
2 | Nut, Casing | 32 | 3932-61 | 648402014 | 27 | Lock Washer | 1 | ’6214-6 | 658407002 |
3 | Stud, Casing (14X12 & 12X10) | 32 | 3862-86 | 658403308 | 28 | Lock Nut, Bearing | 1 | 23-Jun | 658406509 |
Stud, Casing (8X6) | 16 | 3862-90 | 601208285 | 29 | Oil Seal, Bearing Cover | 2 | 20619-04 | 658413638 | |
Stud, Casing (8X6) | 16 | 3862-92 | 648401118 | 30 | Drive Screws | 6 | 12530 | 601482417 | |
4 | Gasket, Casing (14x12x22) | 2 | 10399-55-01 | 658410501 | 31 | Nameplate | 1 | 23017 | 601501505 |
Gasket, Casing (12x10x23) | 25012-01-01 | 661010001 | 32 | Shaft | 1 | 24028-33 | 656420007 | ||
Gasket, Casing (8x6x18) | 25012-02-05 | 662010032 | 33 | Key, Coupling | 1 | 4372-30-21 | 658405055 | ||
5 | Cover, Front (14x12x22) | 1 | 24021-01-30 | 654310309 | 34 | Cover, Bearing O.B. | 1 | 24033-01-01 | 654314004 |
Cover, Front (12x10x23) | 25009-01-30 | 662014003 | 35 | Bolts, Bearing Cover | 2 | 3861-139 | 648401081 | ||
Cover, Front (8x6x18) | 25291-02-30 | 662014129 | 36 | Washer, Bearing Cover | 2 | 3936-19-L8 | 648402030 | ||
6 | Impeller, 14x12 Clockwise Rot. 22” | 1 | 24024-X0-HS | 662005003 | 37 | Nuts, Bearing Housing | 2 | 3932-62 | 658404702 |
Impeller, 12x10 Clockwise Rot. 23” | 25010-Y0-30 | 662005002 | 38 | Bolt, Bearing Housing | 4 | 3861-138 | 648401057 | ||
Impeller, 8x6 Clockwise Rot. 18” | 25292-T0-30 | 662005018 | 39 | Washer, Flat | 2 | 3936-19-L8 | 648402030 | ||
7 | Seal, Impeller Nose | 1 | 7496-158 | 658408109 | 40 | Bolt, Packing Gland | 2 | 3861-165 | 601408289 |
8 | Key, Impeller | 1 | 4372-29-21 | 658405006 | 41 | Gland, Packing Half | 2 | 24034-01-13 | 654315100 |
9 | Nose, Impeller ( Hex Design) | 1 | 24025-04-25L | 652309601 | 42 | Packing Set | 1 | 8264-344-K | 658409503 |
Nose, Impeller (Two Flat Design) | 24025-01-25L | 652309600 | 43 | Screw, Cap | 2 | 3909-04-87 | 658404207 | ||
Nose, Impeller (2 Flat Ion Nitride) | 24025-03-25L | 662014054 | 44 | Plug, Grease | 1 | 5-Jan | 601474695 | ||
10 | Screw, Set | 1 | 14430-19 | 658411400 | 45 | Breather | 1 | Jan-67 | 601473689 |
11 | Jam Nut | 1 | 24026-25L | 658414255 | 46 | Plug, Fitting | 1 | 19368 | 661010020 |
12 | Seal, Impeller | 1 | 7496-153 | 658408059 | 58 | Plug, Pipe | 2 | 2002/1/5 | 658409859 |
13 | Mechanical Seal (Crane Type) | 1 | 24036 | 658416102 | 59 | Plug, Pipe | 1 | 2006/1/5 | 658410006 |
14 | Stuffing Box, Mech. Seal (14X12) | 1 | 24027-01-30 | 653322305 | 60 | Tag, Mechanical Seal | 1 | 22566 | 603445727 |
Stuffing Box, Mech. Seal (12X10) | 24027-02-30 | 662014002 | Packed Split-Box and Wearplate | ||||||
Stuffing Box, Mech. Seal (8X6) | 25290-02-30 | 662014128 | 47 | Wearplate, Split Box | 1 | 24023-01-XX | 654310507 | ||
15 | Bolt, Stuffing Box | 2 | 3861-117 | 648401016 | 48 | Packing Set | 1 | 8264-345-K | 658409552 |
16 | Sleeve, Shaft | 1 | 24029-21BZ | 656422201 | 49 | Nut and Washer Assembly | 2 | 22216-02 | 658413935 |
17 | Seal, Sleeve | 1 | 7496-234 | 658408505 | 50 | Bolt, Split-Box | 2 | 3861-168 | 1/2-13x4 lg Gr 5 |
18 | Slinger | 1 | 24030-01-13 | 654311604 | 51 | Stuffing Box, Split | 2 | 24037-01-87 | 654317007 |
19 | Seal, Slinger | 1 | 7496-238P | 658408554 | 52 | Latern Ring Half | 2 | 24039-13 | 658418207 |
21 | Oil Seal, Inboard Bearing | 2 | 20619-03 | 658413604 | 53 | Fitting, Grease | 1 | 19368-01 | 601499403 |
21 | Bearing, Inboard | 1 | 20615-2 | 658413000 | 54 | Screw, Cap | 2 | 3909-13-87 | 658404405 |
22 | Frame 14X12 | 1 | 24031-01-01 | 654312008 | |||||
Frame 12X10 | 24031-02-01 | 662014001 | 55 | Tool, Impeller Nose & Nut | 1 | 24040 | 658420203 | ||
Frame 8X6 | 25293-02-01 | 662014130 | Tool, Impeller Nose (HEX) | Standard Hex Socket | |||||
23 | Housing, Bearing | 1 | 24032-01-01 | 654313006 | 56 | Tool, Impeller Removal | 1 | 24041 | 658420252 |
24 | Seal, Bearing Housing | 1 | 7496-272 | 658408901 | 57 | Tool, Shaft Holder | 1 | 24042 | 658420302 |

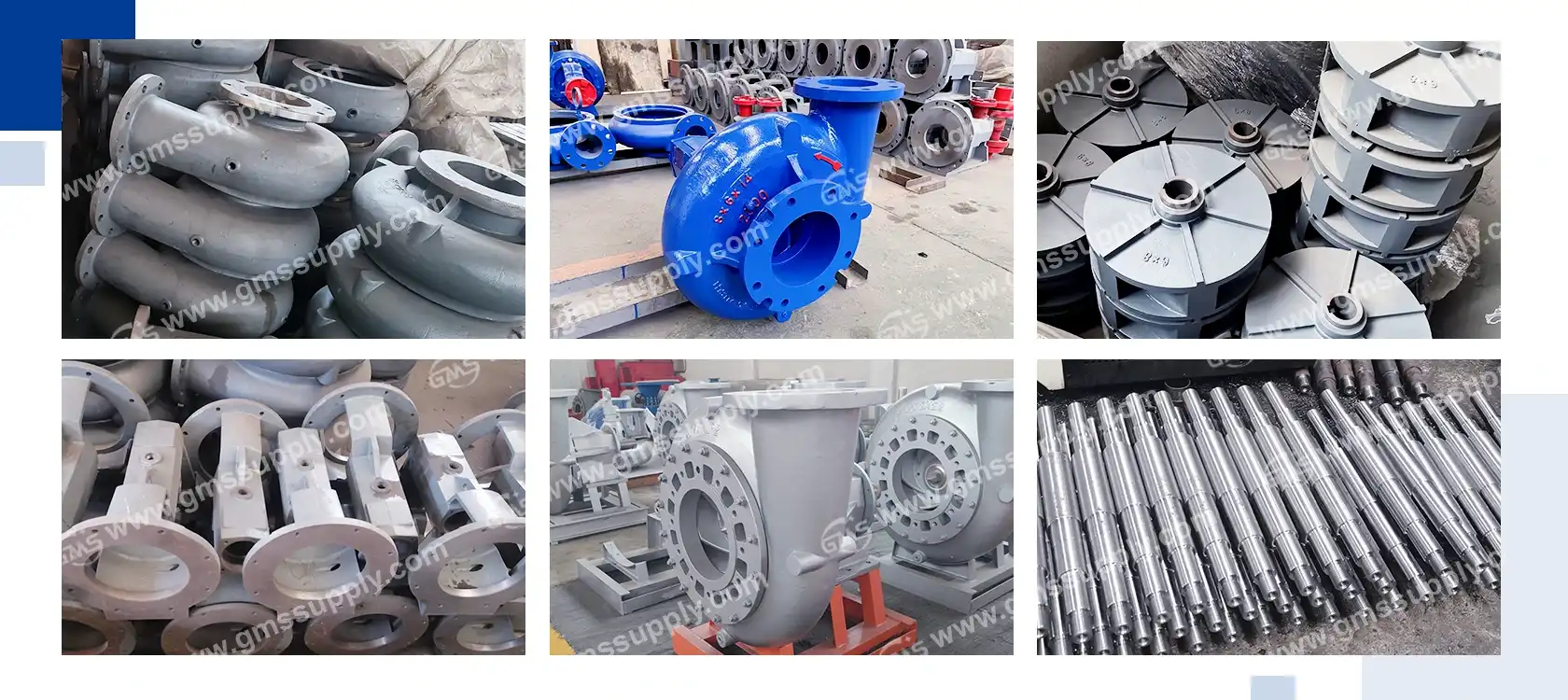

When you choose GMS, you are partnering with a company that prioritizes quality and customer satisfaction. Here’s why we stand out:
Q: What is the lead time for the product?
A: The lead time depends on required quantities; however, we usually have stock available for small orders.
Q: Do you have any certificates for the product?
A: Yes, we hold an ISO certificate for these Centrifugal Pumps and Parts, ensuring compliance and quality.
Q: How can I place an order?
A: Simply contact us at sales@gmssupply.com, and our team will assist you through the process.
For inquiries or further assistance regarding the Mission Magnum XP Pump, please feel free to reach out. We’re here to support your business with high-quality parts and exceptional service.
