GMS-250 Sandmaster Pump/MISSION Sandmaster Pump

Product Name: 250 Centrifugal Pump Packing, Shaft
OEM reference Nos:
20939-02-33
20938-02-1
22224-01-43
22225-01-01
Our Part Nos:
S023939
S021938
S014324
S011225
Application: 250 Series Centrifugal Pump
Origin: China
Lead time: Stock
Certificate: ISO 9001

Send Inquiry

Download

Product Description

GMS, your trusted manufacturer and supplier of high-quality Sandmaster Centrifugal Pump & Parts solutions. Our products deliver the same performance as original ones, ensuring durability and reliability for your operations in the oil and gas industry.

Pump Size

3×2×13 pump
4×3×13 pump
5×4×14 pump
6×5×11 pump
6×5×14 pump
8×6×11 pump
8×6×14 pump
10×8×14 pump

The compact and adaptable Sandmaster Centrifugal Pump includes virtually all of the features of the Magnum I. Sandmasters are more compact in design and can be adapted for hyraulic motor drive. These features make Sandmaster pumps ideal for use in applications such as oilfield frac trucks as well as blending and pump charging for water well drilling applications.
All parts for these pumps are identical to the Magnum except for the frame and the shaft. The frame and the shaft have been shortened 4” to reduce the length of the pump. When space is a premium and prime mover options are limited, the Sandmaster pump is the pump of Choice.

Parts List for Short Pumps

ITEM	GMS	Mission No.	DESCRIPTION	Material
1	S023939	20939-02-33	Shaft, Short pump	42CrMo
2	S021938	20938-02-1	Frame, Short pump	HT250
3	S014324	2224-01-43	Housing, Hydraulic Outboard Bearing	QT700
4	S011225	22225-01-01	Adapter, Hydraulic Drive	QT500
Parts for Short Pumps (All parts for short pumps are identical to the GMS-250/MCN 250 except the above)

Full Parts list for MISSION Sandmaster Pump

ITEM				QTY		MISSION PART No.		DESCRIPTION			MATERAIL			WEIGHT kg
1*				1		See below		Casing
1A				1		10399-46-1		Gasket,casing			Vellumoid			0.01
1B				12		3932-61		Nut,casing			Stl			0.05
1C				12		3862-76		Stud,casing			Stl			0.16
1D				1		8505-04-01		Plug,Casing Drain			Stl			0.03
1E				1		8505-04-01		Plug,flush line			Stl			0.03
2*				1		See below		Impeller
2A				1		19110-72		Seal,impeller			Viton			0.002
2B				1		7300239		Washer,impeller			Stl			0.02
2C				1		7415648		Bolt,impeler lock			Stl			0.15
3*#				1		22223-01-30		Stuffing box,mech.seal			Hard Iron			20
3*&				1		20614-01-30		Stuffing box,packed			Hard Iron			20
3A				2		3861-117		Bolt,stuffing box			Stl			0.05
4				1		20622A		Gland assy,packing			Stl 304			1
5A#				1		22451-1		Seal,mechanical			Tung/Tung			1
5A#				1		648402600		Packing, Shaft - M.S. Backup			Graphite Acrylic			0.3
5A#				Option		648402600		Packing, Shaft - M.S. Backup			Kevlar			0.3
5A				1		25014-04M-B		Packing, Shaft - w/latern ring			Graphite/Acrylic			0.5
5A				Option		250147-04M-D		Packing, Shaft - w/latern ring			Teflon, White			0.5
5A#				Option		25014-04M-C		Packing, Shaft - w/latern ring			Kevlar			0.5
6				2		B3701A		Bolt assy,gland			Stl 304			0.15
7				1		20939-02-33		Shaft			42CrMo			15
7A				1		20943-04A		Sleeve,shaft			38CrMoAl			1
7B				1		4371-5-21		Key,shaft			Stl			0.11
7C				1		23444-01-72		Seal,shaft sleeve			Viton			0.005
8				1		22210-1A		Deflector assembly			Composite			0.4
9				1		20938-02-1		Frame,grease lubricated			Cast iron			75
9C				1		8505-04-01		Plug, Frame Drain			Stl			0.033
9D				1		8267-01		Breather			Stl			0.1
9G				3		2538-1H		Bolt,casing jack			Stl			0.16
10A				1		20626		Cover,inboard bearing			Iron			2.6
10B				1		20625		Gasket,I.B.Brg.Cover			Vegetable fiber			0.01
10C				1		20619-01		Oil seal, I.B.Brg.Cover			Buna-n			0.06
10D				2		3861-1		Bolt, I.B.Brg.Cover			Stl			0.03
10E				2		3932-2		Nut, I.B.Brg.Cover			Stl			0.07
10F				1		20620-01		Exclusion Seal, I.B. Brg. Cvr.			Buna-n			0.01
10G				1		21641-01		Grease fitting			Stl			0.07
10H				1		648411908		Grease fitting			Stl			0.07
11				1		661 00901 OA		Bearing, Inboard & Spacer			Roller			2.1
11				1		20615-1		Bearing,inboard			Vendor			2.1
12				1		20624-01-01		Housing,O.B.bearing			Iron			6
12A				1		7496-253		Seal, O.B.Brg.housing			Buna-n			0.01
12B				4		3861-138		Bolts, O.B.Brg.housing			Stl			0.05
12C				2		3932-62		Nut, O.B.Brg.housing jam			Stl			0.016
13				1		20617A		Cover,O.B.Bearing			Iron			1.8
13A				1		19368-01		Grease zerk, O.B.Brg.Cover			Brass			0.01
13B				1		7496-26		O-ring, O.B.Brg.Cover			Buna-n			0.001
13C				1		20619-02		Oil seal, O.B.Brg.Cover			Buna-n			0.04
13D				2		3861-139		Bolt, O.B.Brg.Cover			Stl			0.025
14				2		20616-1		Bearing, O.B.			Vendor			1.5
14A				1		6124-4		Lockwasher,O.B.Bearing			Stl			0.01
14B				1		6123-4		Locknut, O.B.Bearing			Stl			0.22
Casings-includes studs,nuts & gasket
1*			1			19203-01-30A		Casing,3×2×13		Hard Iron			55
1*			1			19205-01-30A		Casing,4×3×13		Hard Iron			57
1*			1			19222-01-30A		Casing, 5×4×14		Hard Iron			88
1*			1			19122-01-30A		Casing,6×5×11		Hard Iron			90
1*			1			19123-01-30A		Casing, 6×5×14		Hard Iron			95
1*			1			19763-01-30A		Casing, 8×6×11		Hard Iron			97
1*			1			19117-01-30A		Casing,8×6×14		Hard Iron			125
1*			1			20937-01-30A		Casing,10×8×14		Hard Iron			155
Impellers
	2*	1			19204-XX-30		Impeller,3×2×13		Hard Iron			9
	2*	1			19206-XX-30		Impeller,4×3×13		Hard Iron			12.5
	2*	1			19224-XX-30		Impeller,5×4×14		Hard Iron			16
	2*	1			19121-XX-30		Impeller,6×5×11		Hard Iron			14
	2*	1			19121-XX-30		Impeller, 6×5×14		Hard Iron			18
	2*	1			19116-XX-30		Impeller, 8×6×11		Hard Iron			18
	2*	1			19116-A0-30		Impeller,8×6×14		Hard Iron			20
	2*	1			21867-XX-30		Impeller,10×8×14		Hard Iron			20

Product Advantages

Stable Performance

Our products are specifically designed to ensure consistent, high-level performance, even in the most demanding environments.

Industry Standards

Our products comply with stringent international standards, such as ISO 9001, guaranteeing that they meet the highest levels of safety, quality, and performance.

Product Info

Feature	Details
Product Name	GMS-Sandmaster
OEM Reference Nos	Compatible with various models
GMS Part Nos	GMS-SM001
Application	Solid Control, Cementing, Charge Pump, Blender, Waterwell Drilling Other Mobile uses
Origin	China
Lead Time	Stock - 1 week
Certificate	ISO 9001

Product Application

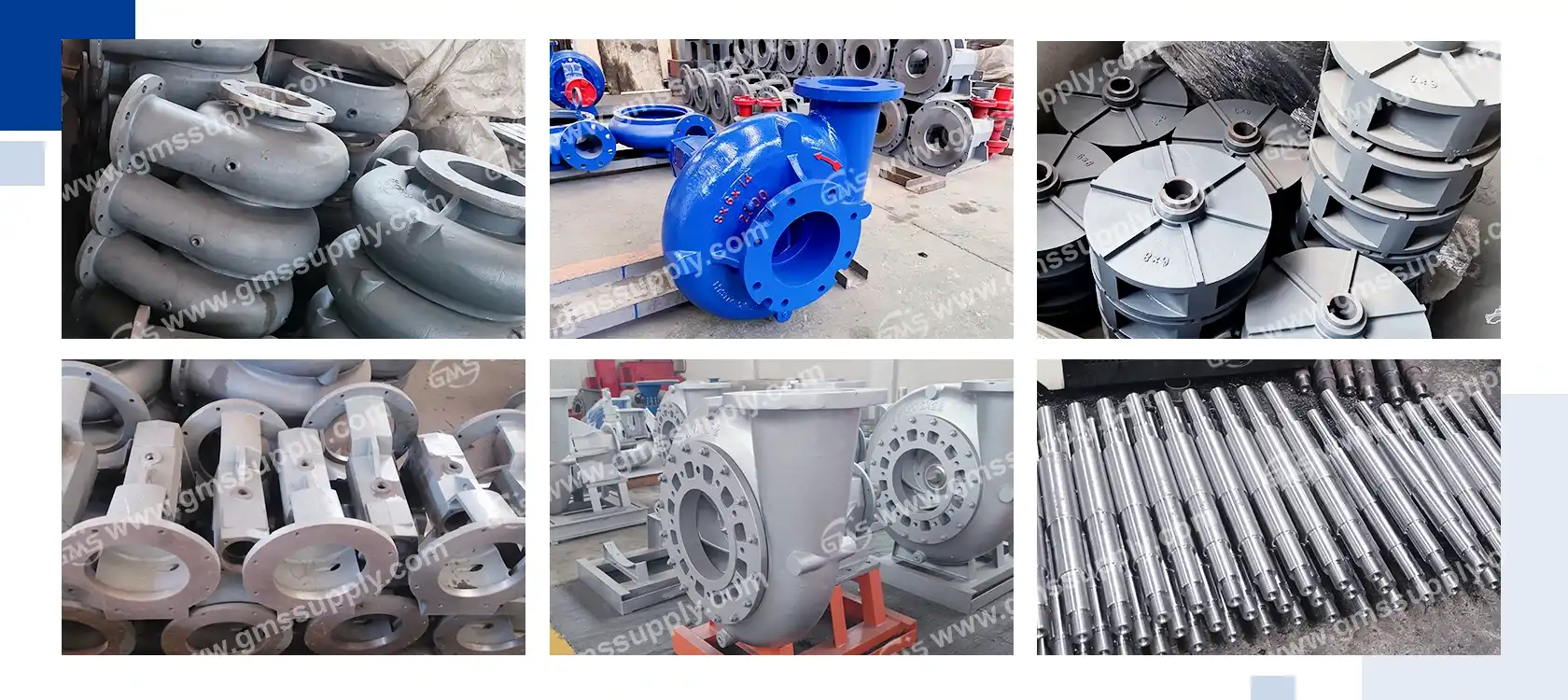

The Sandmaster Centrifugal Pump and Parts are specifically applied in solid control and cementing processes. Whether you are involved in onshore or offshore drilling projects, our parts are designed to integrate seamlessly with existing equipment and provide optimal performance.

product-1-1

Why Choose GMS as Your Supplier?

When you choose GMS, you're not just opting for quality; you're partnering with a company that values excellence. Here’s what we offer:

ISO 9001 Certificate: Our ISO 9001 certification illustrates our immovable commitment to conveying top-quality items and administrations through a steady and viable quality administration system.
Long time Industry Involvement: With over ten a long time of industry encounter, we bring a riches of information and mastery, guaranteeing dependable, high-quality items that surpass client expectations.
Fast Reaction: We esteem your time, prioritizing fast reactions to request, guaranteeing you get quick, clear communication and opportune arrangements to keep your ventures on track.

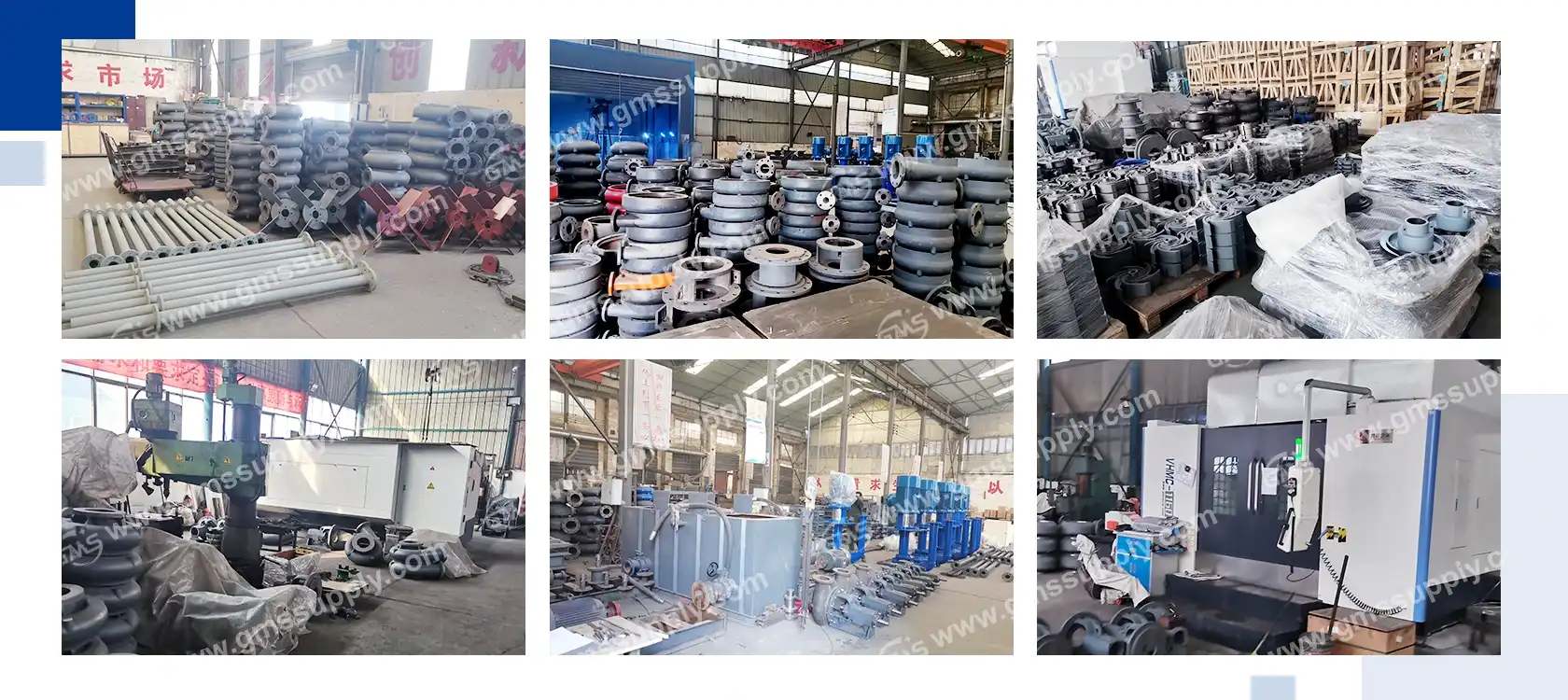

Large Stock: Our broad stock of items guarantees a wide determination, prepared to meet your prompt needs and give you with fast, proficient arrangements for any project.
Short Lead Time: We pride ourselves on advertising brief lead times, streamlining our generation and conveyance forms to offer assistance you meet venture due dates and dodge pointless delays.
Good After-Sales Administrations: Our committed after-sales bolster guarantees that any concerns are quickly tended to, giving you with persistent help for a hassle-free post-purchase experience.
Flexible Arrangements: We offer adaptable arrangements custom-made to your particular needs, giving customized items and administrations that guarantee the idealize fit for your interesting necessities.

product-1-1

FAQs

Q: What is the lead time for the products?
A: The lead time depends on required quantities; however, we typically have stock available for small orders.

Q: Do you have any certificates for products?
A: Yes, our products hold an ISO certificate, ensuring you receive top-quality components.

Q: How can I place an order?
A: Simply contact us at sales@gmssupply.com, and our team will assist you through the process.

Contact Us

For inquiries or further assistance regarding the Sandmaster Pump and Parts, please feel free to reach out. We're here to support your business with high-quality parts and exceptional service.
