GMS 250 Centrifugal Pumps-replace C pump from MCM, Mission Magnum, Halco, Mattco, Harrisburg, SPD Mud Hog

Product Name: 250 Centrifugal Pump
OEM reference Nos: MISSION Magnum/MCM 250
Our Part Nos: 250
Application: Solid Control, Cementing
Origin: China
Lead time: Stock-1 week
Certificate: ISO 9001
Send Inquiry
Download
Product Description

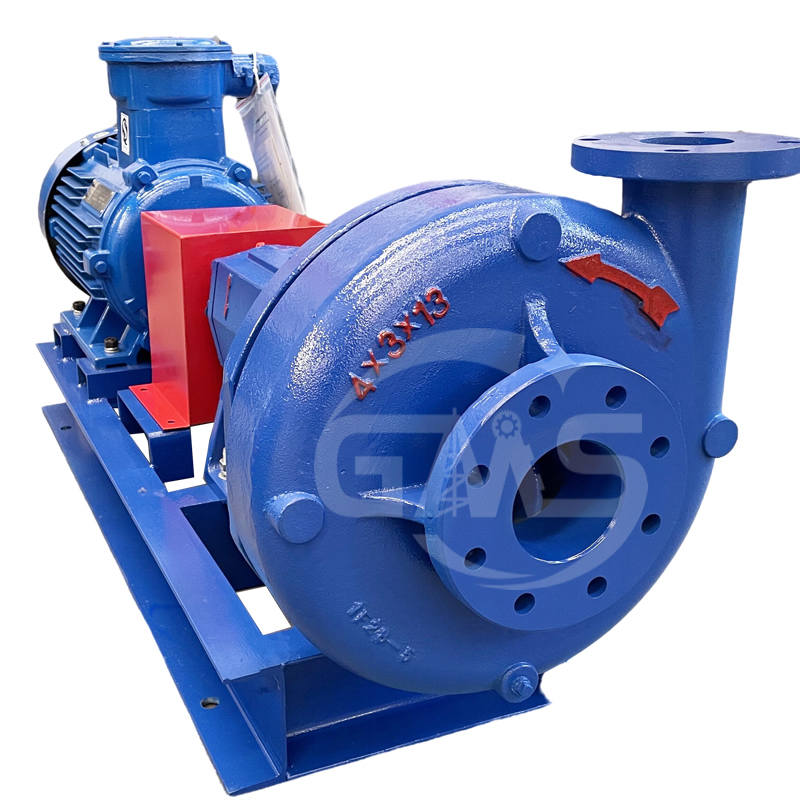

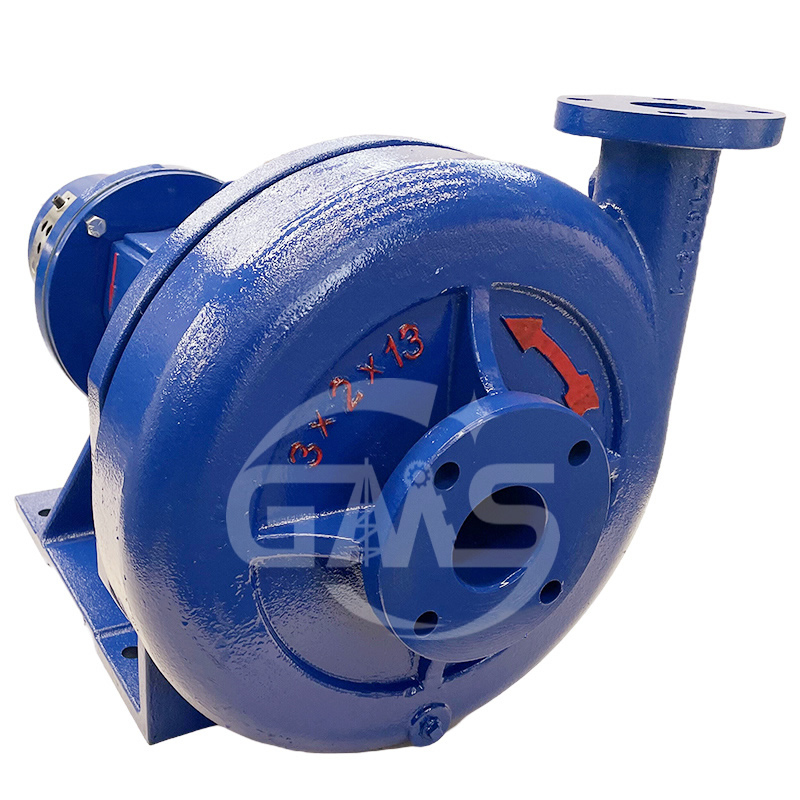

Centrifugal Pumps 250 Series

GMS, your trusted manufacturer and supplier of high-quality GMS 250 Centrifugal Pumps solutions! Our Pumps not only match the performance of original units but also offer exceptional durability and reliability.

Product Introduction

The GMS 250 Centrifugal Pumps is engineered for optimal performance in challenging environments. Known for their robust design and efficiency, these pumps are essential components in various applications within the oil and gas industry, including solid control systems and cementing operations.

Product Advantages

Stable Performance
The GMS Centrifugal Pumps 250 Series are engineered to provide consistent and reliable performance even in the most challenging operational environments.

Industry Standards
Our GMS Centrifugal Pumps 250 Series are built to meet international standards, including ISO certifications, ensuring their adherence to strict safety and quality guidelines.

Product Info

Feature

Specification

Product Name

GMS-250 Centrifugal Pump

OEM Reference Nos

Equivalent with pumps from MCM, Mission Magnum, Halco, Mattco,

Harrisburg, SPD Mud Hog

GMS Part No.

GMS-250

Application

Solid Control, Cementing

Origin

China

Lead Time

Stock - 1 week

Certificate

ISO 9001

Product Application

The Mcm Centrifugal Pumps 250 Series is applied in oil and gas drilling system, specifically tailored for solid control and cementing applications. Its compatibility with existing equipment makes it a preferred choice among engineering procurement companies and drilling contractors.

product-1-1

Parts list

1. Main parts & wearing parts
（1）Overall pump parts

Item Qty Part No. 　 Name Weight
　 kg
1 1 640202123 　 3×2×13 pump head 200
　 1 640202222 　 4×3×13 pump head 210
　 1 640202321 　 5×4×14 pump head 210
　 1 640202529 　 6×5×11 pump head 246
　 1 640202628 　 6×5×14 pump head 253
　 1 640202826 　 8×6×11 pump head 255
　 1 640202925 　 8×6×14 pump head 283
　 1 640203121 　 10×8×14 pump head 313
2 1 010002-220 　 Coupling Ⅰ 10
　 1 010002-165 　 CouplingⅡ 7
3 1 010003-200 　 Coupling rubberⅠ 0.4
　 1 010003-145 　 Coupling rubberⅡ 0.2
4 1 010004-350 　 ShieldⅠ 7.5
　 1 010004-260 　 ShieldⅡ 5
5 1 010005-ww 　 Motor coupling 11

（2）Replace Magnum I parts

ITEM QTY MISSION MCM DESCRIPTION MATERAIL WEIGHT
PART No. PART NO. kg
1* 1 See below 　 Casing 　 　
1A 1 10399-46-1 P25HG Gasket,casing Vellumoid 0.01
1B 12 3932-61 P25HSN Nut,casing Stl 0.05
1C 12 3862-76 P25HSN Stud,casing Stl 0.16
1D 1 8505-04-01 　 Plug,Casing Drain Stl 0.03
1E 1 8505-04-01 　 Plug,flush line Stl 0.03
2* 1 See below 　 Impeller 　 　
2A 1 19110-72 P25IMS Seal,impeller Viton 0.002
2B 1 7300239 　 Washer,impeller Stl 0.02
2C 1 7415648 　 Bolt,impeler lock Stl 0.15
3*# 1 22223-01-30 P25SB/MS Stuffing box,mech.seal Hard Iron 20
3*& 1 20614-01-30 P25SB/PK Stuffing box,packed Hard Iron 20
3A 2 3861-117 　 Bolt,stuffing box Stl 0.05
4 1 20622A P25PG Gland assy,packing Stl 304 1
5A# 1 22451-1 P25MS/TT Seal,mechanical Tung/Tung 1
5A# 1 648402600 　 Packing, Shaft - M.S. Backup Graphite Acrylic 0.3
5A# Option 648402600 　 Packing, Shaft - M.S. Backup Kevlar 0.3
5A 1 25014-04M-B 　 Packing, Shaft - w/latern ring Graphite/Acrylic 0.5
5A Option 250147-04M-D 　 Packing, Shaft - w/latern ring Teflon, White 0.5
5A# Option 25014-04M-C 　 Packing, Shaft - w/latern ring Kevlar 0.5
6 2 B3701A 　 Bolt assy,gland Stl 304 0.15
7 1 20612-02-33 P25SHFT Shaft 42CrMo 17
7A 1 20943-04A 　 Sleeve,shaft 38CrMoAl 1
7B 1 4371-5-21 　 Key,shaft Stl 0.11
7C 1 23444-01-72 　 Seal,shaft sleeve Viton 0.005
8 1 22210-1A P25SRW Deflector assembly Composite 0.4
9 1 20618-12-1 P25PED Frame,grease lubricated Cast iron 80
9C 1 8505-04-01 　 Plug, Frame Drain Stl 0.033
9D 1 8267-01 　 Breather Stl 0.1
9G 3 2538-1H 　 Bolt,casing jack Stl 0.16
10A 1 20626 　 Cover,inboard bearing Iron 2.6
10B 1 20625 P25IBBCG Gasket,I.B.Brg.Cover Vegetable fiber 0.01
10C 1 20619-01 P25IBBOS Oil seal, I.B.Brg.Cover Buna-n 0.06
10D 2 3861-1 　 Bolt, I.B.Brg.Cover Stl 0.03
10E 2 3932-2 　 Nut, I.B.Brg.Cover Stl 0.07
10F 1 20620-01 P251BBES Exclusion Seal, I.B. Brg. Cvr. Buna-n 0.01
10G 1 21641-01 　 Grease fitting Stl 0.07
10H 1 648411908 　 Grease fitting Stl 0.07
11 1 661 00901 OA 　 Bearing, Inboard & Spacer Roller 2.1
11 1 20615-1 　 Bearing,inboard Vendor 2.1
12 1 20624-01-01 　 Housing,O.B.bearing Iron 6
12A 1 7496-253 　 Seal, O.B.Brg.housing Buna-n 0.01
12B 4 3861-138 　 Bolts, O.B.Brg.housing Stl 0.05
12C 2 3932-62 　 Nut, O.B.Brg.housing jam Stl 0.016
13 1 20617A 　 Cover,O.B.Bearing Iron 1.8
13A 1 19368-01 　 Grease zerk, O.B.Brg.Cover Brass 0.01
13B 1 7496-26 　 O-ring, O.B.Brg.Cover Buna-n 0.001
13C 1 20619-02 　 Oil seal, O.B.Brg.Cover Buna-n 0.04
13D 2 3861-139 　 Bolt, O.B.Brg.Cover Stl 0.025
14 2 20616-1 P25OBBRG Bearing, O.B. Vendor 1.5
14A 1 6124-4 　 Lockwasher,O.B.Bearing Stl 0.01
14B 1 6123-4 　 Locknut, O.B.Bearing Stl 0.22
Casings-includes studs,nuts & gasket
　 　 Part no. 　 DESCRIPTION 　 　
1* 　 19203-01-30A P25D233H Casing,3×2×13 　 　
1* 　 19205-01-30A P25D343H Casing,4×3×13 　 　
1* 　 19222-01-30A P25D454H Casing, 5×4×14 　 　
1* 　 19122-01-30A P25D561H Casing,6×5×11 　 　
1* 　 19123-01-30A P25D564H Casing, 6×5×14 　 　
1* 　 19763-01-30A P25D681H Casing, 8×6×11 　 　
1* 　 19117-01-30A P25D684H Casing,8×6×14 　 　
1* 　 20937-01-30A 　 Casing,10×8×14 　 　
Impellers
2* 　 19204-XX-30 P25D233MRxxx Impeller,3×2×13 　 　
2* 　 19206-XX-30 P25D343MRxxx Impeller,4×3×13 　 　
2* 　 19224-XX-30 P25D454MRxxx Impeller,5×4×14 　 　
2* 　 19121-XX-30 P25D561MRxxx Impeller,6×5×11 　 　
2* 　 19121-XX-30 P25D564MRxxx Impeller, 6×5×14 　 　
2* 　 19116-XX-30 P25D561MRxxx Impeller, 8×6×11 　 　
2* 　 19116-A0-30 P25D684MRxxx Impeller,8×6×14 　 　
2* 　 21867-XX-30 　 Impeller,10×8×14 　 　

(3) Replace MISSION 2500 Supreme parts

ITEM QTY MISSION 　 DESCRIPTION MATERAIL WEIGHT
PART No. 　 kg
1* 1 See below 　 Casing 　 　
1A 1 10399-46-1 　 Gasket,casing Vellumoid 0.01
1B 12 3932-61 　 Nut,casing Stl 0.05
1C 12 H2507-3 　 Stud,casing Stl 0.16
1D* 1 See below 　 Wear pad.includes 　 　
　 Stds,rucs＆gskt
1E 1 8505-2H 　 Plug,Casing Drain Stl 0.03
2* 1 See below 　 Impeller 　 　
2A 1 H19110-72 　 Seal,impeller Viton 0.002
3*# 1 H22223-01-30 　 Stuffing box,mech.seal 　　Hard Iron 20
3*& 1 H20614-01-30 　 Stuffing box,packed 　　Hard Iron 20
3A 2 H3861-117 　 Bolt,stuffing box Stl 0.05
3B& 1 19368-1H 　 Grease fitting Stl 0.01
4 2 H20622AH 　 Gland assy,packing Stl 304 1
5A# 1 H22451-1A 　 Seal,mechanical Tung/Tung 1
5B~ 1 8264-24-0B 　 Packing, Shaft 　 0.7
6 2 20629 　 Bolt assy,gland Stl 304 0.15
7 1 H20612-02-33 　 Shaft 42CrMo 17
7A# 1 H20613-21A 　 Sleeve,Shaft 　 1
7A& 1 H20613-21G-7A 　 Sleeve,Shaft(Ceramic) 　 1
7B 1 H4372-5-21 　 Key,Shaft Stl 0.11
7C 1 23444-01-72 　 Seal,Shaft Sleeve Viton 0.005
8 1 22210-1A 　 Deflector,Assembly Composite 0.4
9 1 H17444 　 Frame,Grease Lubricated Cast iron 80
9C 1 　 　 Plug,Frame Drain Stl 0.033
9D 1 H8267-1 　 Breather Stl 　
9G 2 H2538-1 　 Bolt,Casing Jack Stl 　
10A 1 H17950 　 Cover,Inboard Bearing Iron 2.6
10B 1 H20625 　 Gasket, Inboard Bearing Cover Vegetable fiber 0.01
10C 1 H2564-4 　 Labyrinth Seal,IB Brg Cvr Buna-n 0.06
10D 2 H3861-1 　 Bolt,I.B.Brg.Cover Stl 0.03
10E 1 　 　 Grease Fitting Stl 　
11 1 N/A 　 Bearing,Inboard Vendor 2.1
12 1 H20624-01-01 　 Housing,O.B.Bearing Iron 6
12A 1 H7496-253 　 Seal,O.B.Brg Housing Buna-n 0.01
12B 4 H3861-138 　 Bolts,O.B.Brg.Housing Stl 0.05
12C 2 H3932-62 　 Nut,O.B.Brg.Housing Stl 0.016
13 1 20617A 　 Cover,O.B.Bearing Iron 1.8
13A 1 　 　 Grease Zerk,O.B.Brg.Cvr. Stl 0.01
13B 1 H7496-26 　 O-ring,O.B.Bearing Cover Buna-n 0.001
13C 1 H2564-3 　 Labyrinth Seal,O.B. Brg Cvr. Buna-n 0.04
13D 2 H3861-139 　 Bolt,O.B.Brg.Cover Stl 0.025
14 2 H20616-1S 　 Bearing,O.B.(2 Req’d) Vendor 1.5
14A 1 H6124-4 　 Lockwasher,O.B.Bearing Stl 0.01
14B 1 H6123-4 　 Locknut,O.B.Bearing Stl 0.22
Casings-includes studs,nuts & gasket
1* H19203-01-30A 　 Casing,3×2×13 　 　
1* H19205-01-30A 　 Casing,4×3×13,w/ wear pad 　 　
1* H19222-01-30A 　 Casing,5×4×14 w/ wear pad 　 　
1* H19122-01-30A 　 Casing,6×5×11 w/ wear pad 　 　
1* H19123-01-30A 　 Casing, 6×5×14 w/ wear pad 　 　
1* H19763-01-30A 　 Casing, 8×6×11 w/ wear pad 　 　
1* H19117-01-30A 　 Casing,8×6×14 w/ wear pad 　 　
1* H20937-01-30A 　 Casing,10×8×14 w/ wear pad 　 　
Impellers and Casing Wear Pads
2* H19204-XX-30 　 Impeller,3×2×13 Open 　 　
2* H19206-XX-30 　 Impeller,4×3×13 Open 　 　
2* H2523-XX-30 　 Impeller,5×4×14 Semi Open 　 　
2* H2523-XX-30 　 Impeller,6×5×11 Semi Open 　 　
2* H2523-XX-30 　 Impeller, 6×5×14 Semi Open 　 　
2* H2524-XX-30 　 Impeller, 8×6×11 Semi Open 　 　
2* H2524-XX-30 　 Impeller,8×6×14 Semi Open 　 　
2* H2526-XX-30 　 Impeller,10×8×14 Semi Open 　 　
1E H2501-01-30A 　 Wear Pad,4×3×13 Casing 　 　
1E H2502-01-30A 　 Wear Pad,5×4×14 Casing 　 　
1E H2503-01-30A 　 Wear Pad,6×5×11 Casing 　 　
1E H2504-01-30A 　 Wear Pad, 6×5×14 Casing 　 　
1E H2505-01-30A 　 Wear Pad, 8×6×11 Casing 　 　
1E H2506-01-30A 　 Wear Pad,8×6×14 Casing 　 　
1E H2507-01-30A 　 Wear Pad,10×8×14 Casing 　 　
(4) Replace MCM 250 Centrifugal pump parts
Item no. Qty Mission Part no. MCM Part no. Description
1 1 20618-12-1 P25PED 250 Pedestal
2 1 20612-02-33 P25SHFT 250 Shaft
3 1 20624-01-01 P25OBBH 250 Outboard Bearing Housing
4 1 20622A P25PG 250 Packing Gland
5 1 20615-1 P25IBBRG 250 Inboard Bearing
6 1 22210-1A P25SRW 250 Water Slinger Ring
7 1 20626A P25IBBC 250 Inboard Bearing Cover
8 2 20616-1 P25OBBRG 250 Outbaord Bearing
9 1 20617A P25OBBC 250 Outboard Bearing Cover
10 1 8264-24-OBA P25PMSG 250 Graphite Packing
　 1 8474-24-1A P25PMSK 250 King Packing
　 1 8264-24-7A P25PMST 250 Teflon Packing
　 1 22451 P25MS/TT 250 Mechanical Seal
11 2 3701A P25GABA 250 Gland Bolt Assy
12 1 20613-21G-7A P25SHSLVC 250 Shaft Sleeve, Ceramic
13 1 20614-01-30 P25SB/PK 250 Stuffing Box F/Packing
　 1 22223-01-30A P25SB/MS 250 Stuffing Box F/Mech Seal
14 1 19204-XX-30 P25D233MRxxx 250 2x3x13 Impeller
　 1 19206-XX-30 P25D343MRxxx 250 3x4x13 Impeller
　 1 19224-XX-30 P25D454MRxxx 250 4x5x14 Impeller
　 1 19121-XX-30 P25D561MRxxx 250 5x6x11 Impeller
　 1 19121-XX-30 P25D564MRxxx 250 5x6x14 Impeller
　 1 19121-XX-30 P25D561MRxxx 250 6x8x11 Impeller
　 1 19116-XX-30 P25D684MRxxx 250 6x8x14 Impeller
15 1 19203-01-30A P25D233H 250 2x3x13 Housing Assy
　 1 19205-01-30A P25D343H 250 3x4x13 Housing Assy
　 1 19222-01-30A P25D454H 250 4x5x14 Housing Assy
　 1 19122-01-30A P25D561H 250 5x6x11 Housing Assy
　 1 19123-01-30A P25D564H 250 5x6x14 Housing Assy
　 1 19763-01-30A P25D681H 250 6x8x11 Housing Assy
　 1 19117-01-30A P25D684H 250 6x8x14 Housing Assy
16 12 3862-76/3932-61 P25HSN 250 Housing Stud w/nut
7A 　 10399-46-1A P25FEGK 250 Fluid End Gasket Kit
17 1 10399-46-1 P25HG 250 Housing Gasket
18 1 19110-72 P25IMS 250 Impeller Seal O-Ring
19 1 7496-236 P25SSS 250 Shaft Sleever Seal O-Ring
20A 　 20619A P25OSK 250 Oil Seal Kit
20 1 20619-01 P25IBBOS 250 Inboard Bearing Seal Kit
21 1 20620-01 P251BBES 250 Inboard Exclusion Seal
22 1 20619-02 P25OBBOS 250 Outboard Bearing Seal
23A 　 20625A P25PEGK 250 Power End Gasket Kit
23 1 20625 P25IBBCG 250 Inboard Bearing Cover Gasket
24 1 7496-253 P25OBBHS 250 Outboard Bearing Hsg Seal
25 1 7496-26 P25OBBCS 250 Outbaord Bearing Cover Seal
26 1 6123-4A P25BLNK 250 Bearing Lock Nut Kit

Why Choose GMS as Your Supplier?

At GMS, we pride ourselves on our:

  • ISO 9001 Certificate: Our ISO 9001 certification illustrates our faithful commitment to conveying top-quality items and administrations through a steady and viable quality administration system.
  • Long time Industry Encounter: With over ten a long time of industry involvement, we bring a riches of information and ability, guaranteeing solid, high-quality items that surpass client expectations.
  • Fast Reaction: We esteem your time, prioritizing fast reactions to request, guaranteeing you get quick, clear communication and opportune arrangements to keep your ventures on track.
  • Large Stock: Our broad stock of items guarantees a wide choice, prepared to meet your quick needs and give you with speedy, effective arrangements for any project.
  • Short Lead Time: We pride ourselves on advertising brief lead times, streamlining our generation and conveyance forms to offer assistance you meet venture due dates and dodge pointless delays.
  • Good After-Sales Administrations: Our devoted after-sales bolster guarantees that any concerns are quickly tended to, giving you with persistent help for a hassle-free post-purchase experience.
  • Flexible Arrangements: We offer adaptable arrangements custom fitted to your particular needs, giving customized items and administrations that guarantee the idealize fit for your interesting prerequisites.

product-1-1

FAQ

Q: What is the lead time for the GMS Centrifugal Pumps 250 Series?
A: We usually have stock available for small orders. Normally lead time is 1-2 weeks.

Q: Do you have any certificates for the GMS Centrifugal Pumps 250 Series?
A: Yes, we possess an ISO certificate for Centrifugal pumps and parts.

Q: How can I place an order?
A: Simply contact us at sales@gmssupply.com, and our team will assist you throughout the process.

Contact Us

For inquiries about our GMS 250 Centrifugal Pumps, feel free to reach out via email at sales@gmssupply.com.

We're here to provide you with all the information you need! By focusing on the unique features and advantages of the products, we aim to attract centrifugal pump and parts overhaul, repair, maintenance, and services companies in the oil and gas drilling industry. We cater to oil and gas exploration companies, drilling contractors, equipment distributors, and engineering procurement companies and distributors.

YOU MAY LIKE

Online Message

Learn about our latest products and discounts through SMS or email
